Electric Process Heater Control Panel

Skid-Mounted Modular System, Engineered-to-Order

The Integrated Flow Solutions 6012 Series Electric Heater Control Panels offer convenient, economical control of resistive loads. A broad list of configuration options allow the 6012 series control panel to fit most common electric heater control requirements. These pre-engineered, pre-wired panels require only sensor, load and power supply connections. The 6012 Series Heater Control Panel totally eliminates the engineering, design, component procurement, assembly and testing steps required to build a control panel.


Benefits

SCR power control efficiently and accurately proportions power to the resistive heating load. Unlike traditional contactor control, SCR’s deliver:

  • Reduced Power Cost
  • Extended Heater Life
  • Lower Maintenance
  • Improved Process Products
  • Stable Process Temperature
  • Complete Control Function Testing
  • 24/7 Customer service

Custom Configurations

Integrated Flow Solutions offers customized heater control panels to meet customer specific applications around the world. Call for more information.

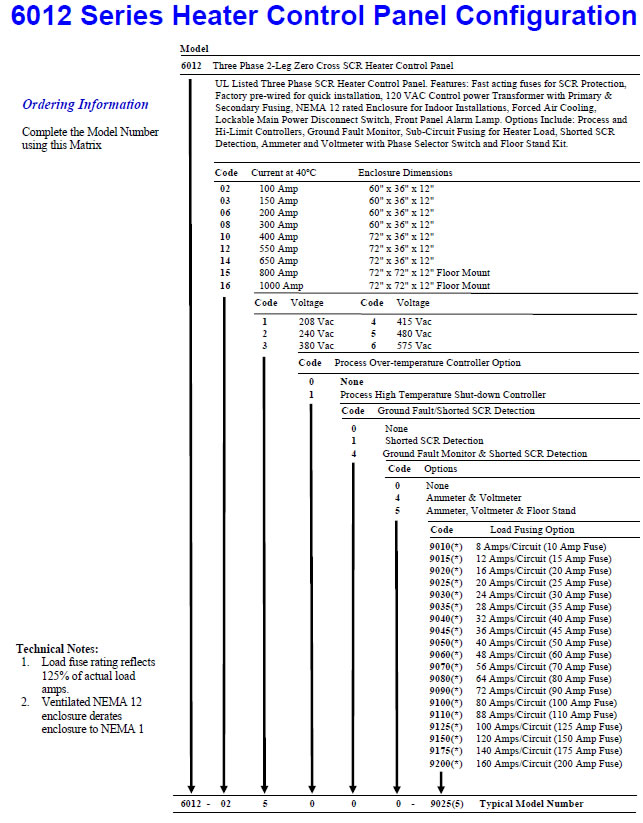

Click here for our 6012 Series Heater Control Panel Configuration chart.


Standard Features

  • Painted Steel NEMA 12 Enclosure
  • 3-Leg, 2-wire Zero-cross SCR Power Control protected by fast acting fuses
  • Fan Cooling
  • Load Fusing for up to 8 Circuits
  • Lockable Main Power Disconnect
  • 120 Volt Control Power transformer with primary and secondary fusing
  • Front Panel Power and Alarm Indicator Lights
  • Element Over-temperature Controller Manual Reset and Safety Contactor
  • Dry Contacts for External Run (Shut-down) Permissive
  • Field Selectable Process or Differential Temperature Control
  • Front Display Process Temperature and Set Point(s)
  • Convenient Wall Mount Design

Optional Features

  • Process Temperature Limit Controller
  • Shorted SCR Detection
  • Ground Fault Monitor & Shutdown with Illuminated Reset
  • Ammeter & Voltmeter
  • Floor Stand
  • 1 to 8 Circuits

For a modular Fuel Gas Conditioning Package (or similar unit) skid-mounted and engineered-to-order, call 281-638-9870 or send us an email.
